DC motor driver

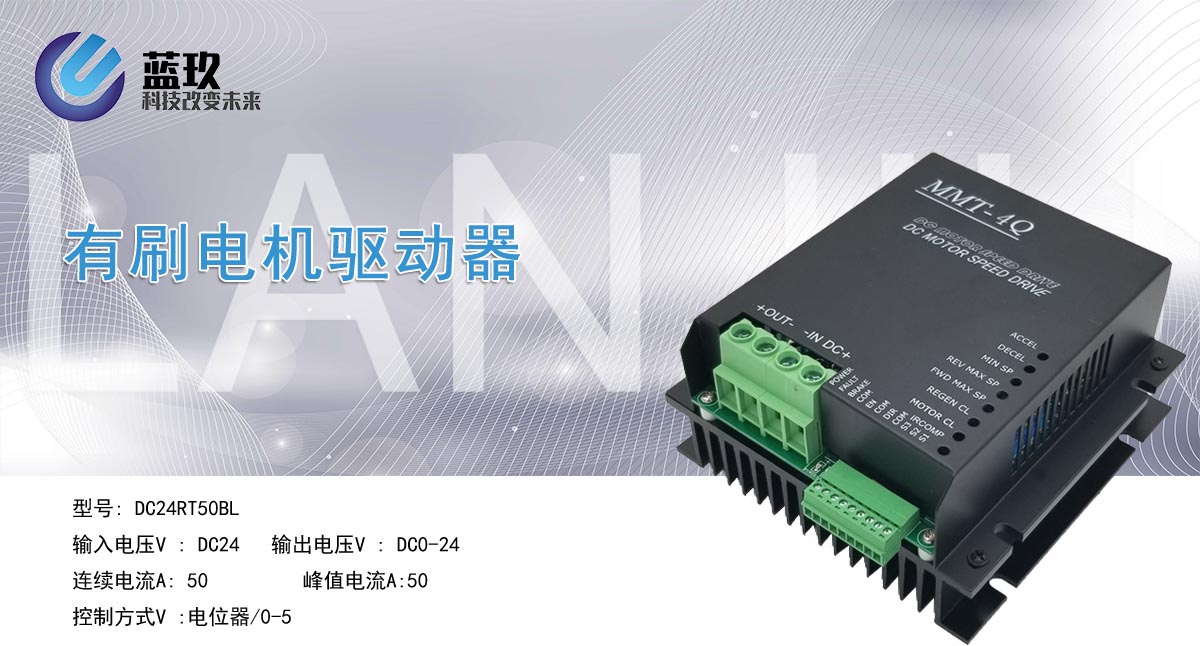

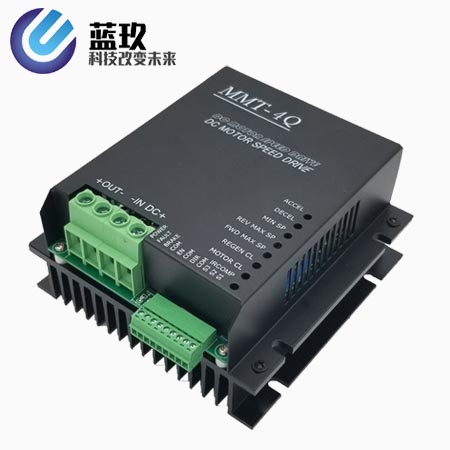

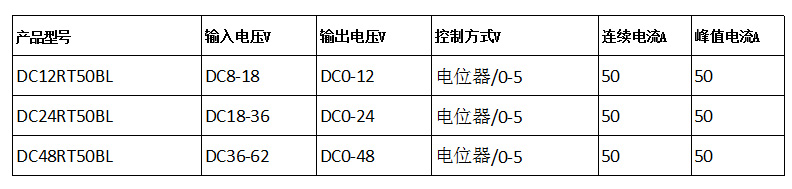

DC24RT50BL Product instructions

RT series governor is low-voltage DC four quadrant regeneration pulse width speed regulation, adopts special single-chip microcomputer intelligent control, fast response, stable operation, reliable operation, complete protection functions, etc. Low noise, high efficiency, low maintenance, better service life of DC motor, four quadrant regenerative operation mode, regenerative braking, There is no need for external reversing contactor, which will not cause overheating or burnout of motor parts or components. When the temperature is too high, the governor will reduce its output current through the temperature judgment circuit to prevent overheating protection. If the temperature is still too high, the governor will stop output to better protect the safety of the motor and governor

Characteristic:

This series of speed regulators are low-voltage DC four quadrant regeneration pulse width speed regulation, using special single-chip microcomputer intelligent control, fast response, stable operation, reliable operation, complete protection functions, etc.

◆ pulse width modulation

Low noise, high efficiency, low maintenance and better service life of DC motor

◆ four quadrant regeneration operation mode

◆ regenerative braking

No external reversing contactor is required, which will not cause overheating or burning of motor parts or components

◆ enabling / braking / reversing terminal

One of the functions can be realized by a simple passive switch or transistor collector open circuit

◆ status indicator

Power supply indication and various fault alarm indications can provide the visual state of the governor

◆ forward / reverse speed can be set separately

◆ output current setting function

◆ brake current setting function

◆ torque compensation function

◆ double closed loop PI regulation (current, voltage)

◆ standard analog signal control

Analog quantity: 0-5V or potentiometer control

◆ overvoltage / undervoltage protection function

◆ overheat protection function

When the temperature is too high, the governor will reduce its output current through the temperature judgment circuit to prevent overheating protection. If the temperature is still too high, the governor will stop the output to better protect the safety of the motor and governor

performance index

1. PWM pulse width modulation

2. Speed regulation ratio: 1:80

3. Speed regulation model: potentiometer (10K Ω / 2W)

4. Input impedance: ≥ 50K Ω

5. Speed (reference accuracy%) 1%

6. Soft start time: 0.2-20 s

7. Ambient temperature: - 10 ℃ ~ + 60 ℃

8. Environmental humidity: relative humidity ≤ 80rh. (no condensation)

9. Instantaneous short circuit protection (50uS)

10: Boundary dimension: 135 * 135 * 70mm

11. Weight: 0.9 kg

13. SMT technology, small size

14. Suitable for rare earth, permanent magnet and other excited motors
