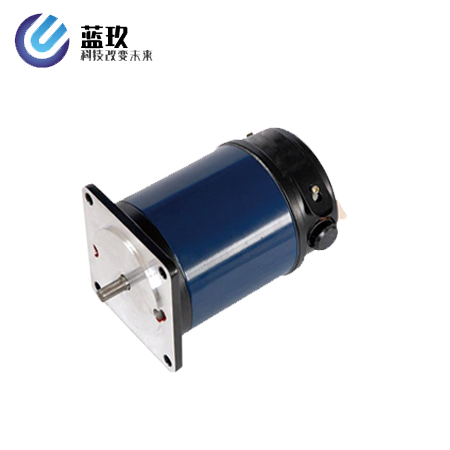

Lk70zyt series 50w-120w

Classification：DC brush motor
Browse times：times
Release date：2019-10-16 09:19:09

I want to make an inquiry.

Product overview
Performance characteristics
technical parameter

1. overview

ZYT series DC permanent magnet motor adopts ferrite permanent magnet excitation, which is closed self cooling type; as a small power DC motor, micro motor can be used as driving element in various devices. The coaxial DC motor can be equipped with encoder, brake, coding plate, etc.; it is widely used in testing machines, CNC machine tools, medical devices, experimental equipment, packaging and printing machinery, textile machinery, plastic machinery, food machinery, cable equipment, welding equipment, teaching equipment, etc.

2. Model description

直流电机

3. Service conditions:

1. The altitude shall not exceed 4000m.

2. Ambient temperature: - 25 ℃ ~ + 40 ℃.

3. Relative humidity ≤ 95% (+ 25 ℃).

4. Allowable temperature rise: not more than 75K (1000m above sea level).

直流电机

直流电机型号参数表：

Model	(mN.m)Torque	(r/min)Speed	(W)Power	Voltage	Current ≤	(r/min)Speed tolerance
70ZYT51	223	3000	70	24	4.3	200
70ZYT52	223	3000	70	27	3.8	200
70ZYT53	223	3000	70	48	2.2	200
70ZYT54	223	3000	70	110	0.95	200
70ZYT55	191.1	6000	120	24	7.5	300
70ZYT56	191.1	6000	120	27	6.6	300
70ZYT57	191.1	6000	120	48	3.8	300
70ZYT58	191.1	6000	120	220	0.8	300
