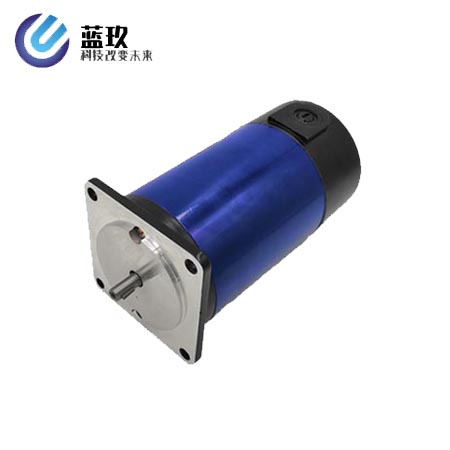

Lk90zyt series 80w-250w

Classification：DC brush motor
Browse times：times
Release date：2019-10-16 09:19:09

I want to make an inquiry.

Product overview
Performance characteristics
technical parameter

1. overview

ZYT series DC permanent magnet motor adopts ferrite permanent magnet excitation, which is closed self cooling type; as a small power DC motor, micro motor can be used as driving element in various devices. The coaxial DC motor can be equipped with encoder, brake, coding plate, etc.; it is widely used in testing machines, CNC machine tools, medical devices, experimental equipment, packaging and printing machinery, textile machinery, plastic machinery, food machinery, cable equipment, welding equipment, teaching equipment, etc.

2. Model description

直流减速电机

3. Service conditions:

1. The altitude shall not exceed 4000m.

2. Ambient temperature: - 25 ℃ ~ + 40 ℃.

3. Relative humidity ≤ 95% (+ 25 ℃).

4. Allowable temperature rise: not more than 75K (1000m above sea level).

直流减速电机

Selection table of DC permanent magnet motor:

MODEL	TORQUE(N.M)	SPEED	POWER	VOLTAGE	CURRENT	CIS reversal
MODEL	TORQUE(N.M)	(R/MIN)	(W)	(V)	≤	(R/MIN)
90ZYT01	323	1500	50	110	0.66	100
90ZYT02	323	1500	50	220	0.33	100
90ZYT03	294	3000	92	110	1.2	200
90ZYT04	294	3000	92	220	0.6	200
90ZYT05	294	3000	92	24	6.1	200
90ZYT51	510	1500	80	110	1.1	100
90ZYT52	510	1500	80	220	0.55	100
90ZYT53	480	3000	150	110	2	200
90ZYT54	480	3000	150	220	1	200
90ZYT55	510	1500	80	24	5	100
90ZYT56	510	1500	80	12	10	100
90ZYT101	796	1500	125	110	1.6	100
90ZYT102	796	1500	125	220	0.8	100
90ZYT103	733	3000	230	110	2.8	200
90ZYT104	733	3000	230	220	1.5	200
90ZYT105	733	3000	230	24	13.5	200
90ZYT106	733	1500	125	24	6.5	100
90ZYT107	733	1300	100	36	4	100
90ZYT108	733	3000	250	48	6.5	200
